Material: PPR--Random Polypropylene(Type 3)
Sizes: 20mm to110mm
Pressure Rating: 1.0Mpa, 1.25MPa, 1.6MPa, 2.0MPa, 2.5MPa
Colors: Light grey, white, green or other colors on request
Connection: Socket fusion joint, electro fusion joint or transition joint
Standard: ISO9001, 14001; OHSMS18001 GB/DIN
Product Description
In cold and hot water transportation project, the PPR pipes and fitttings adopts advanced fusion technology, whose technical performance and economical indicator are better than other similar pipes. Particularly, its excellent health performance, from production to the whole process of recycling waste can achieve high health and environmental protection requirements.
Specification
Nominal Diameter (mm) | Nominal Wall Thickness (En,mm) | Nominal Wall Thickness (En,mm) | Nominal Wall Thickness (En,mm) | Nominal Wall Thickness (En,mm) |
20 | 2.0 | 2.3 | 2.8 | 3.4 |
25 | 2.3 | 2.8 | 3.5 | 4.2 |
32 | 2.9 | 3.6 | 4.4 | 5.4 |
40 | 3.7 | 4.5 | 5.5 | 6.7 |
50 | 4.6 | 5.6 | 6.9 | 8.3 |
63 | 5.8 | 7.1 | 8.6 | 10.5 |
75 | 6.8 | 8.4 | 10.3 | 12.5 |
90 | 8.2 | 10.1 | 12.3 | 15.0 |
110 | 10.0 | 12.3 | 15.1 | 18.3 |
Advantages:
■ High Temperature Resistance: PPR pipe the maximum sustained working temperature is up to 70° C, the maximum transient temperature is up to 95° C.
■ Heat Preservation: Low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
■ Non-toxic: No heavy matal additives, would not be covered with dirt or contaminated by bacterium.
■ Corrosion Resistance: Resist chemical matters and electron chemical corrosion.
■ High Flow Capacity: Smooth interior walls and low friction result in low resistance and high volume.
■ Excellent Flexibility.
■ Low Installation Costs: Light weight and ease of installation can reduce installation costs
■ Longevity: More than 50 years under proper use.

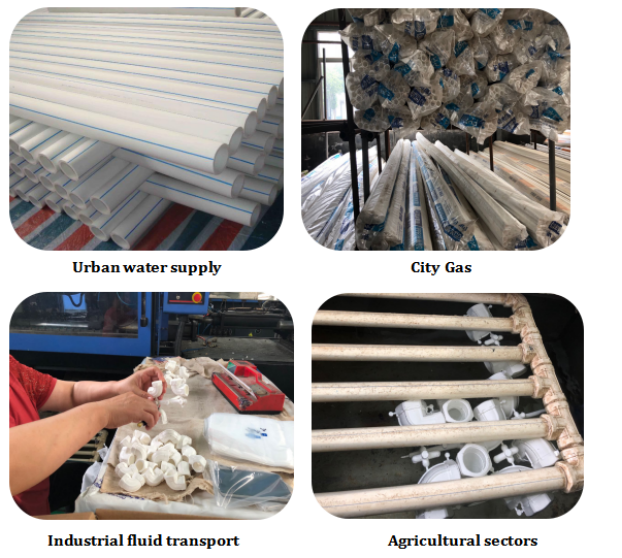

Application
Residential Apartments, Condominiums, Public Housing,Schools, Laboratories and Chemical Sewerage,Hotels and Resorts.
